User interface

This page describes different aspects of the user interface (UI) of the DSH.

Menu bar

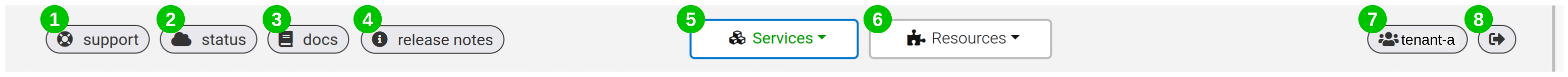

The menu bar of the DSH Console is the topmost part of the page:

The menu bar of the DSH Console

It contains the following UI elements:

1. “Support” button: Navigate to ServiceNow, where you can contact DSH’s platform administrators.
2. “Status” button: Navigate to the DSH’s status page, where you can check the status of multiple components of the DSH.
3. “Docs” button: Navigate to the manual of the DSH.
4. “Release notes” button: Navigate to the release notes of the DSH.
5. “Services” menu: Click this dropdown menu to navigate to the overview page of the tenant’s services, or to a specific service.
6. “Resources” menu: Click this dropdown menu to navigate to the overview page of the tenant’s resources, or to a specific resource.
7. “Tenants” button: Navigate to the landing page of the DSH. You can select another tenant from there.
8. “Logout” button: Log out of the DSH Console.

Status bar

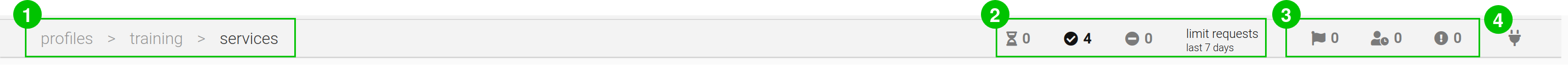

The status bar of the DSH Console is located between the menu bar and the contents of the page:

The status bar of the DSH Console

It contains the following UI elements:

1. Breadcrumbs: The location of the current page in the DSH Console.
2. Limit requests: The number of pending, approved and unsuccessful limit requests. Hover the cursor over it to see a tooltip with more information, and click it to navigate to the overview page for limit requests.
3. Notifications: The number of notifications of type “informative”, “user action required”, and “system error”. Hover the cursor over it to see a tooltip with more information, and click it to navigate to the overview page for notifications.
4. DSH status: The current status of the DSH platform. A red icon indicates that the DSH isn’t available.

Buttons

Most buttons in the DSH display a text that communicates which action you trigger when you click. However, some buttons only display an icon, and the table below displays the corresponding action:

Button	Context and description
	Resource: Delete the resource in question. Application or service: Destroy the application or service in question.
	Certifcates and secrets: Inspect the resource in question. Client secret of the Tenant Management API: Display the secret.
	Overview page for resources: Request a new limit for the resource in question.
	Overview page for resources: navigate to the details page of the resource in question.
	Object storage bucket: Configure the bucket in question.
	Application or service: Edit the service definition.
	Application or service: Start the application or service.
	Application or service: Change the number of instances of the application.
	Application or service: Stop the application or service.
	Topics: Show or hide properties and metrics.
	Services overview page: Request a new limit for the "CPU" or "Memory" resources.
	Service details page: Navigate to the Loki logs for the task in question.
	Service details page: Navigate to the health overview of the task in question.
